Hook type automatic shot blasting machine working process

Hook type automatic shot blasting machine working process

Hook type automatic shot blasting machine is a kind of equipment used for surface treatment and cleaning of the workpiece, which is suitable for cleaning and processing of large and heavy workpieces. It uses a hook system to suspend the workpiece inside the equipment for cleaning treatment to remove surface oxidation, welding slag, rust and other impurities, and improve the surface roughness of the workpiece.

The working principle is as follows:

Feed system: The workpiece to be cleaned is suspended on the transmission chain through the lifting device or the hook, and then transported to the feed system of the shot blasting machine.

Hook cleaning chamber: After entering the cleaning chamber, the workpiece is suspended on the hook and rotated by the transmission device. The cleaning room has a high-speed rotating shot blast and spray gun.

Shot blasting cleaning process: Start the shot blasting device and project the shot blasting particles onto the workpiece surface. Shot blasting particles have a certain impact force and can remove surface oxidation, welding slag, rust and other impurities. At the same time, the spray gun will release cleaning agents (such as water or solvents) to help clean the surface of the piece.

Shot blast particle recovery and reuse: During the cleaning process, shot blast particles bounce back after contact with the workpiece surface and are recovered by the recovery system. After screening and cleaning, the recovered shot blasting particles can be used again to realize the recycling of shot blasting particles.

Discharge system: The cleaned workpiece is removed from the hook, usually through a lifting device or conveyor roller.

Hook type automatic shot blasting machine can clean large and heavy workpieces through the hook system, improving the cleaning efficiency and production capacity. The entire workflow can be automated, saving labor costs, while ensuring cleaning quality and consistency. There is a hook rotating device in the cleaning room, so that the workpiece can be rotated 360 degrees to ensure the all-round cleaning of the workpiece surface. At the same time, the shot blasting machine can also be equipped with a spray device to carry out cleaning treatment and improve the cleaning effect.

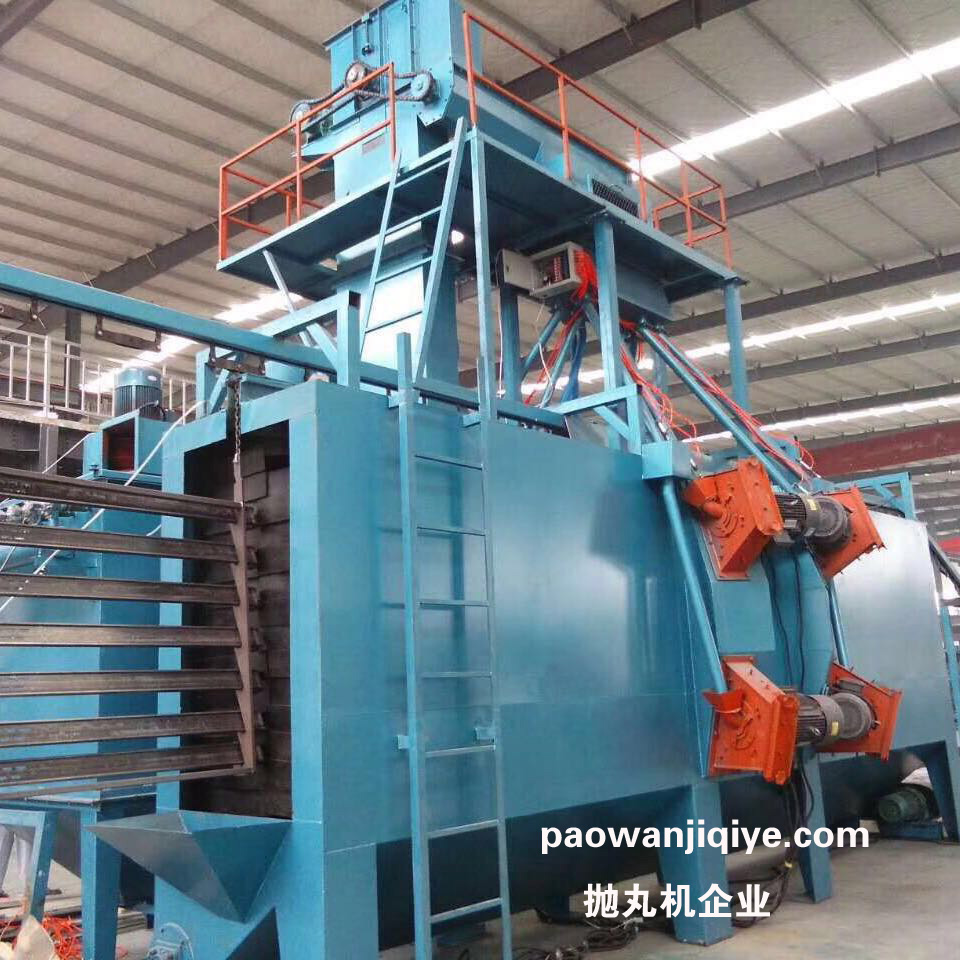

Shot blasting machine

…………
